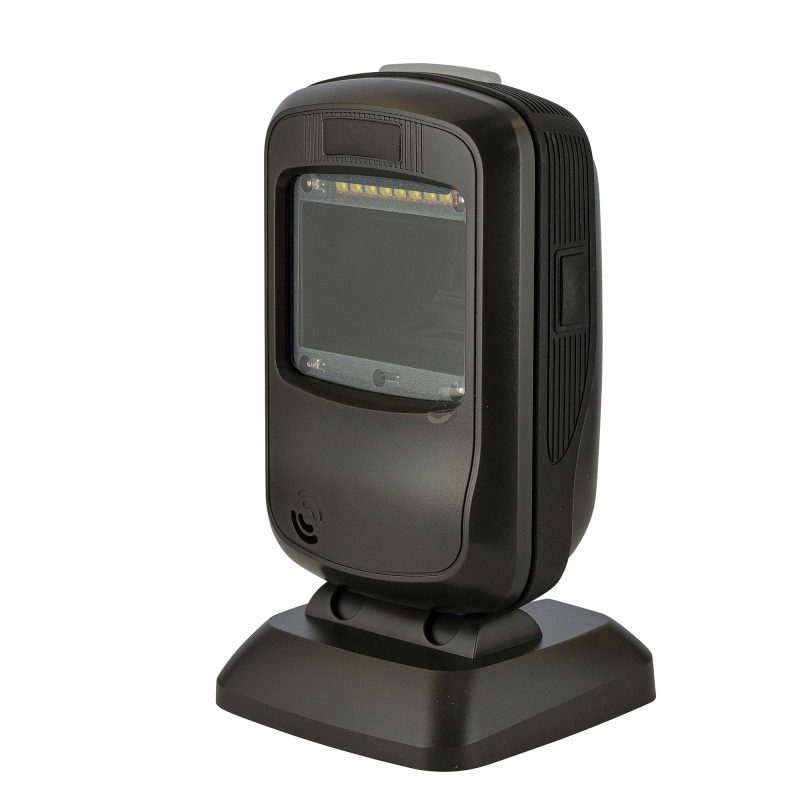

A global provider of complete POS hardware solutions, Star Micronics is proud to provide the high-performance BSD-FR4080 2D desktop barcode scanner. Equipped with a high-power CPU, this scanner can read various barcodes, from 1D barcodes to high-volume 2D barcodes, on paper, uneven media, and screens covered with protective film. It’s fast, accurate, easy to use, and compatible with any POS software.
Built for efficiency, the switch at the top of the scanner allows users to quickly toggle between normal mode and high-motion-tolerance mode.
The scanner’s exceptional motion tolerance (2.5m/s) and large field of view (horizontal 51°, vertical 32°) further enhances the user experience. The scanner’s featured IR sensor enables speedy capture of barcodes, increasing throughput and productivity.
Durable and built to last, the scanner’s IP52-rated design protects it from dust, water, and other contaminants. The scanner can also withstand multiple 1.2m drops to concrete.
Star Micronics is proud to offer a complete range of POS hardware solutions, including a wide variety of POS accessories like scanners, customer displays, tablet stands and enclosures, and more.
| High Performance | 2.5m/s motion tolerance and large field of view (horizontal 51°, vertical 32°) |
| Easy to Use | Plug and play with iOS, Android, and Windows devices |
| Durable | IP52-rated design and drop-resistant up to 1.2m |
| Efficient | Quickly toggles between normal mode and high-motion-tolerance mode |
| Warranty-Protected | The BSD-FR4080 desktop barcode scanner comes with a 2-year warranty with the options to EXTEND-A-STAR® and/or SWAP-A-STAR® |
| Four Scanning Modes | Level Mode: The scanner’s trigger will activate the decode session.
Sense Mode: The scanner activates a decode session every time it detects a barcode presented to it. Continuous Mode: The scanner automatically starts one decode session after another. Pulse Mode: When the trigger is pulled and released, scanning is activated until a barcode is decoded or the decode session timeout expires. |
| Performance | Image Sensor | 1280×800 CMOS |
| Illumination | White LED | |
| Symbologies | 2D: PDF417, Data Matrix, QR Code, Micro QR Code, Aztec, etc. | |
| 1D: EAN-13, EAN-8, UPC-A, UPC-E, ISSN, ISBN, Codabar, Code 128, Code 93, ITF-6, ITF-14, Interleaved 2 of 5, Industrial 25, Standard 25, Matrix 2 of 5, GS1 Databar, Code 39, Code 11, MSI-Plessey, Plessey, etc. | ||
| Resolution* | ≥3mil | |
| Typical Depth of Field* | EAN-13: 10-210mm (13mil) | |
| QR Code: 10-180mm (15mil) | ||
| Motion Tolerance* | 2.5m/s | |
| Scan Angle** | Pitch: ±50°, Roll: 360°, Skew: ±45° | |
| Field of View | Horizontal 51°, Vertical 32° | |
| Min. Symbol Contrast | 25% | |
| Mechanical/Electrical | Interfaces | RS-232, USB |
| Dimensions | 83(W)×81(D)×148(H)mm | |
| Weight | 293g | |
| Notification | Beep, LED indicator | |
| Rated Power Consumption | 1041mW (typical) | |
| Operating Voltage | 5VDC±5% | |
| Current@5VDC (Operating) | 219mA (typical) | |
| Environmental | Operating Temperature | -20°C to 60°C (-4°F to 140°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) | |
| Humidity | 5%~95% (non-condensing) | |
| ESD | ±14 KV (air discharge); ±8 KV (direct discharge) | |
| Drop | 1.2m drops to concrete (for six sides, one drop per side) | |
| Sealing | IP52 | |
| Certifications | FCC Part15 Class B, CE EMC Class B | |
| Accessories | Cable | USB: Used to connect the scanner to a host device. |
| Power Adapter | DC5V power adapter to provide power for the scanner with RS-232 cable |
*Test conditions: T=23°C; Illumination=300lux using incandescent lamp;
**Test conditions: Scan Distance= (min. DOF + max. DOF)/2; T=23°C; Illumination=300lux using incandescent lamp; 2D: QR Code;
10 Bytes; Resolution=15mil; PCS=0.8.
